Decals & membrane switches

KEYFLEX are pleased to offer labels, Decals and membrane switches to compliment your equipment design and functionality. Using specific materials such as polyester, polycarbonate and polyurethane, our decals are produced to withstand the application’s requirements. As with all of our product range we offer a full design and supply service incorporating artwork and mechanical drawings. Where desired we can create prototypes using digital output and laser cutting to alleviate the need to create production tooling before the final design has been confirmed.

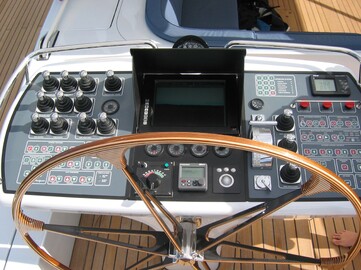

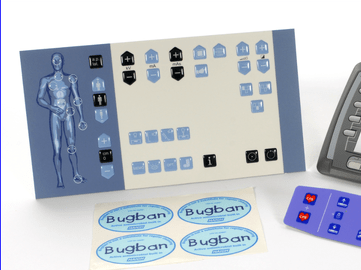

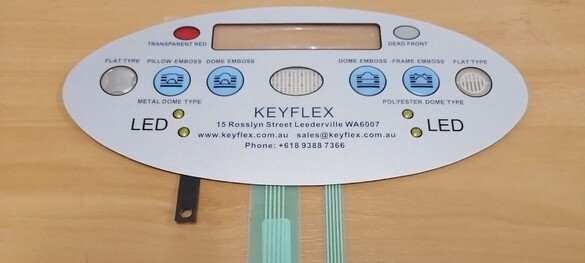

Our membrane switches can incorporate tactile switches for positive feedback, LEDs and can be supplied with terminating connectors. Clear windows for liquid crystal displays, electro-luminescent backlighting and a newly developed integrated LED light guide film can all be designed into your membrane panel or front panel decal where desired.

LGF (Light guide film) Backlit Membrane Keypads

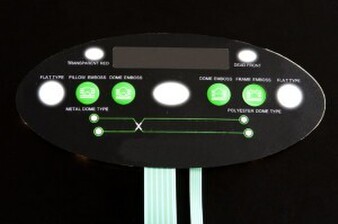

The light guide film (LGF) brings integrated LED backlighting to membrane switches and front panel decals allowing text and full key illumination. Our LGF provides even light distribution across the keypad/decal front panel while keeping the thickness similar to standard membrane switch panels.

LGF appLGF app

We test our membranes and domes for operational lifespan to give you peace of mind

This short clip shows an actuation test where the life cycle of the keypad components with movement, such as a metal snap dome and overlay can be stress tested.

DURASWITCH PRODUCTS

We are licensed for Duraswitch products so applications requiring rotary encoding, cursor control or ultra high reliability and endurance can be catered for.

DURASWITCH PUSHGATE®

Duraswitch products offer a durable and reliable alternative to the traditional membrane switch. Their thin profile design works without scraping, flexing, grinding or material compromise associated with traditional switches.

• 30 Million Plus Actuations
• Normally Closed / Open Safety Switch
• Tactile Feel Does Not Change
• Impossible to Tease
• High Impact-Vandal Resistant
• Large Key Option
• Dual Output
• Illumination Options
• Extreme Altitude / Temp.
• Peel & Place

DURASWITCH
ThiNcoder® ROTOR

DURA

• Lowest Profile Encoder
• Low Cost
• Flat Panel Integration on Flex Circuits
• Saves Power
• 100,000 Rotations
• Environmentally Sealed Circuit
• Eliminates Through-Holes
• Easily Integrated with Pushgate and Magnamouse
• Multiple Codes and Indexing Options
• No Soldering Required

DURASWITCH MAGNAMOUSE™

magnamouse21

• Cursor Control – Ultra Thin
• Over 1 Million Actuations
• Durable and Reliable
• Low Cost
• Environmentally Sealed
• Self Centering
• Integration
• Low Profile
• Digital or Analog
• Used in Flat Panel Keypanels / Polyester,
• Rubber or Plastic

What material should I specify for decals & membrane switches?

See this post for an explanation on the different physical properties of various Overlay material (front layer material) Membrane material design

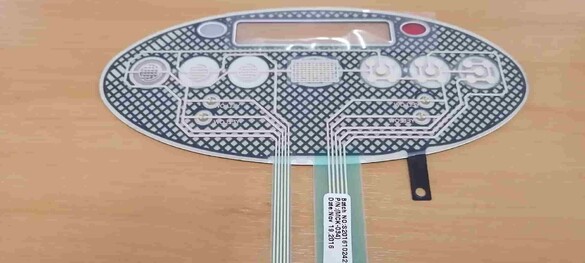

Circuit Layer

There are two basic types of circuit layers that are used in membrane switch assemblies, PET and FPC.
PET is a polyester where the circuit is silver ink and applied to the base material in a screen printing process

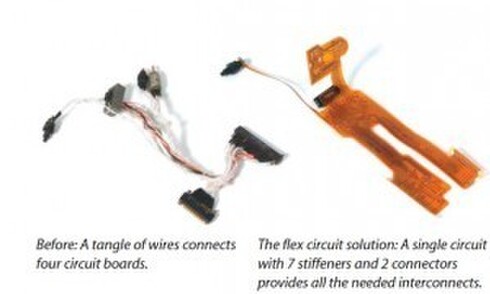

FPC or flexible printed circuit

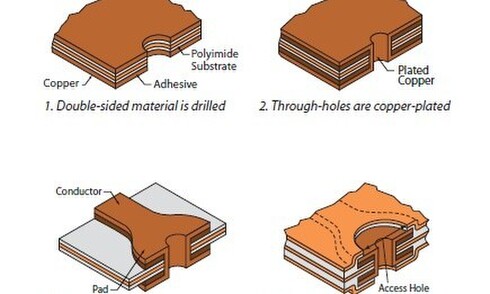

Is a polyimide (Kaptron) base with a copper etch for the circuit, similar to traditional PCB manufacture but in a much thinner format and allows for soldering of components and connectors.
